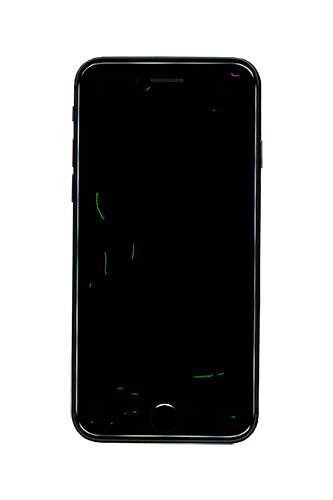

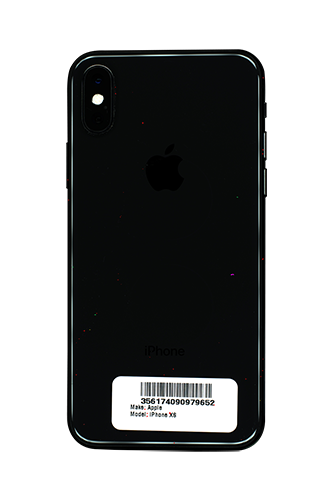

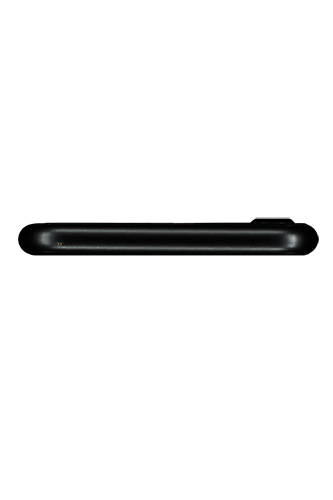

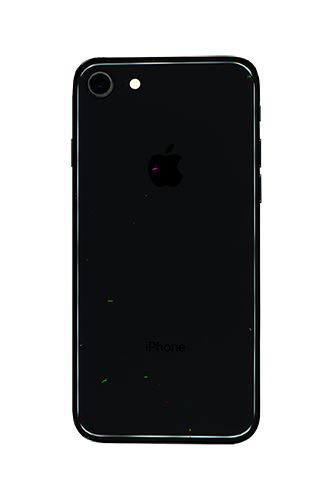

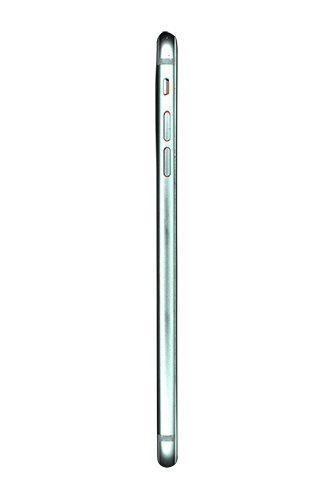

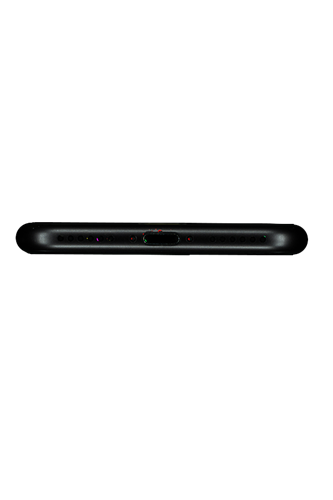

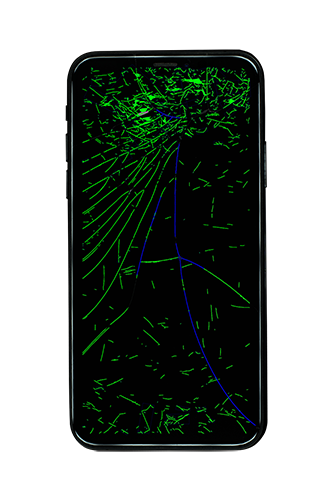

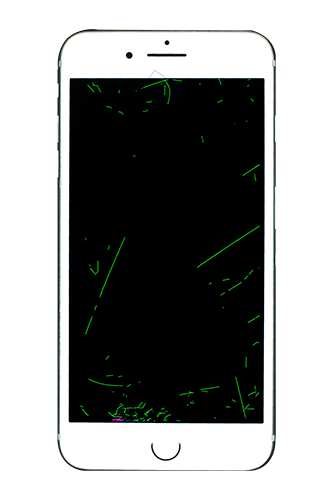

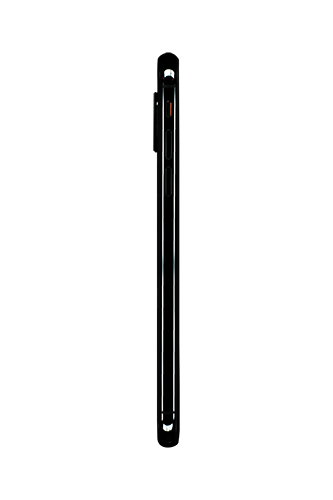

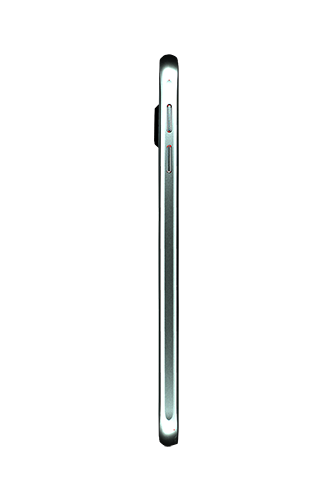

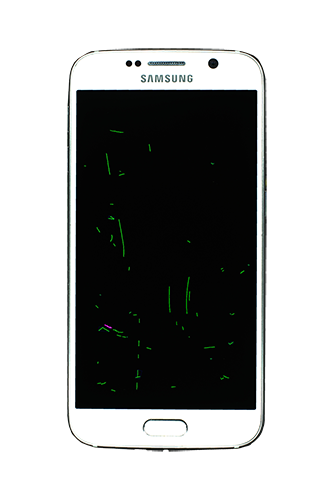

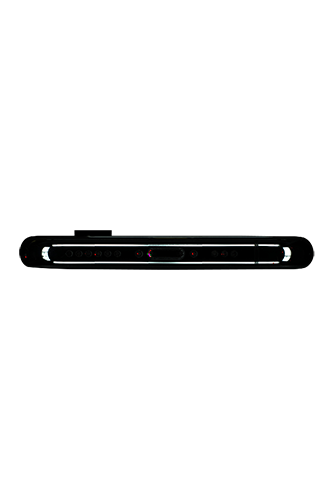

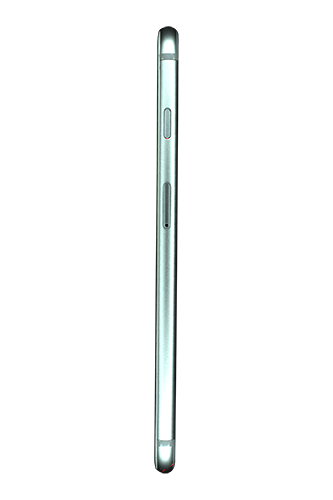

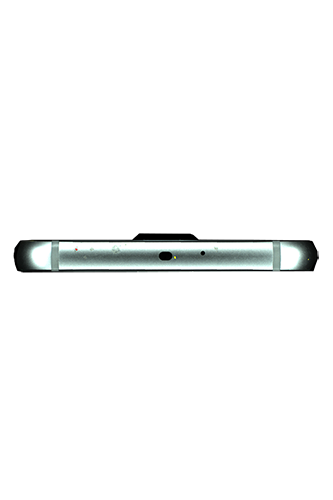

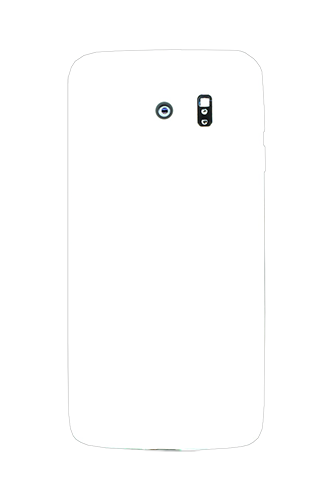

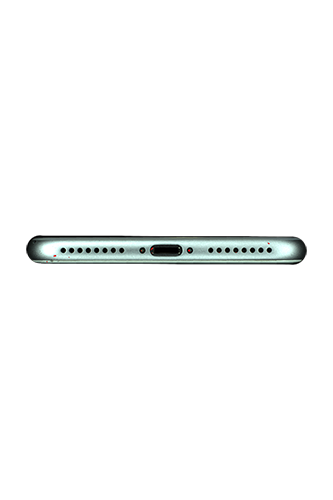

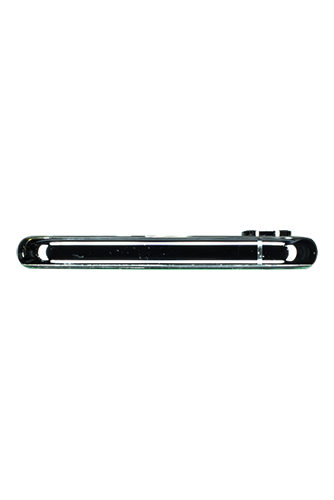

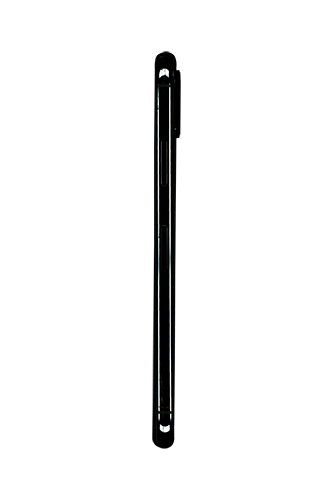

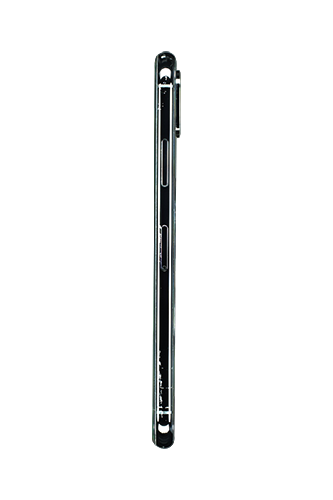

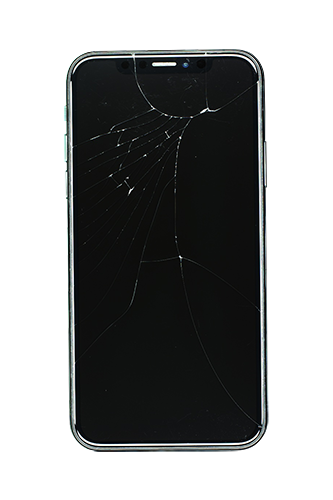

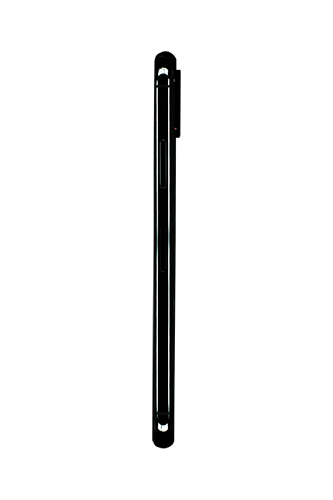

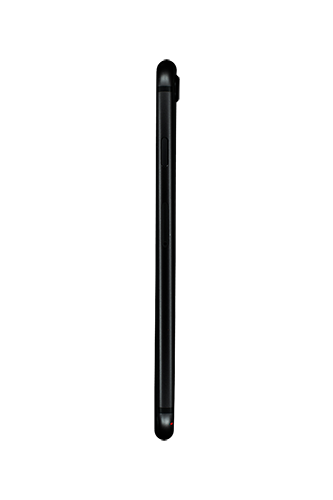

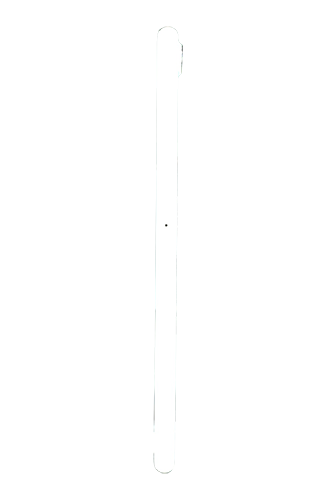

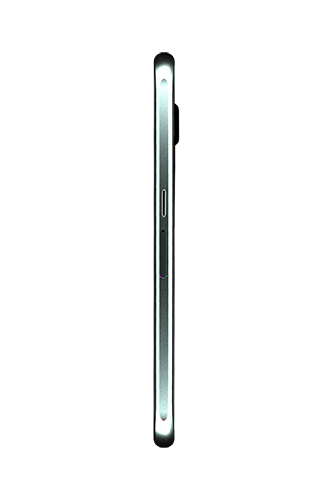

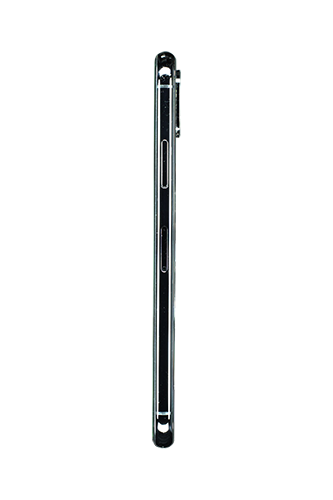

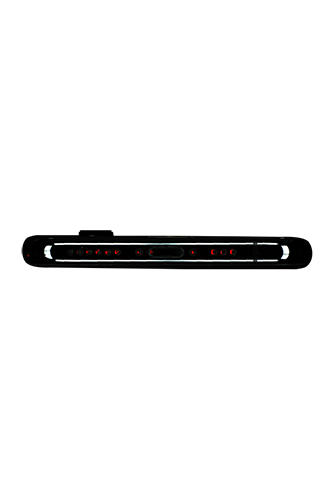

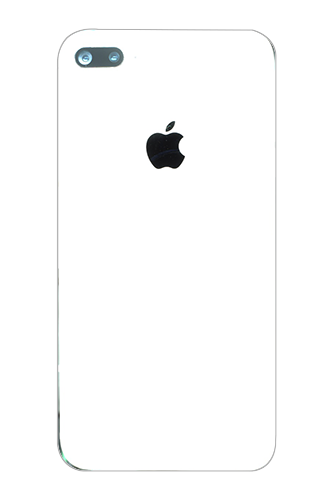

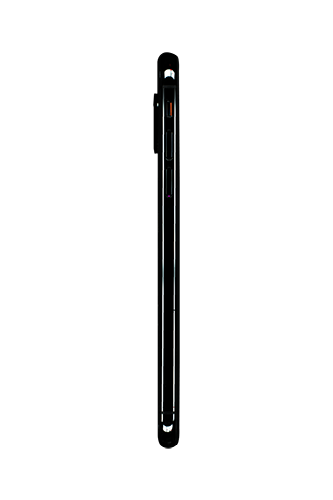

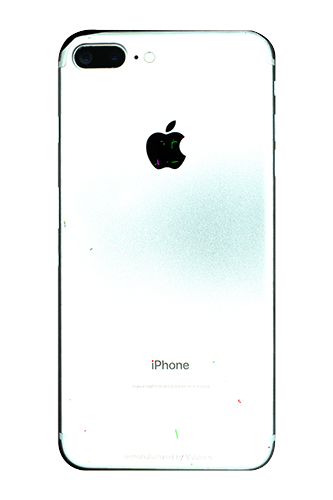

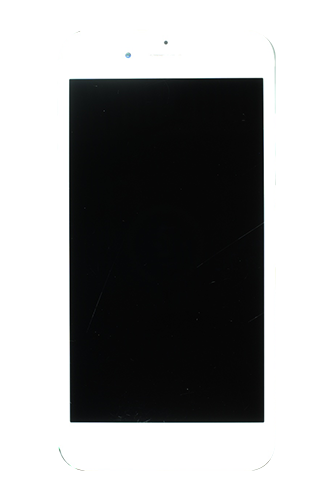

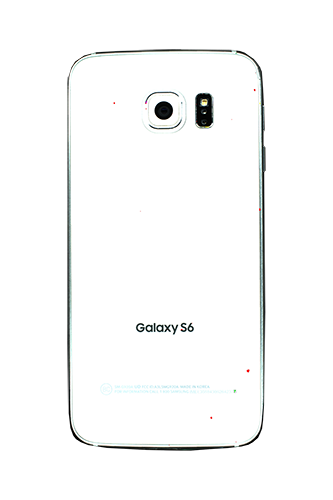

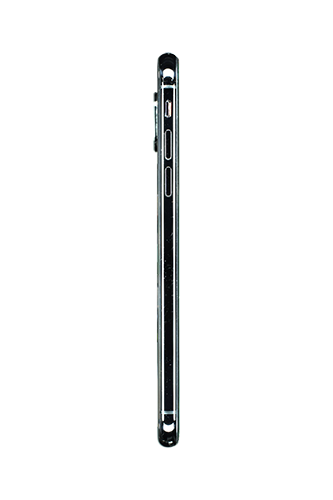

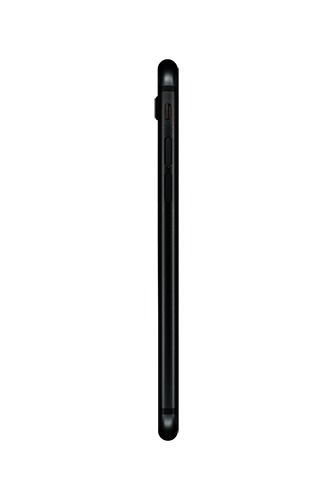

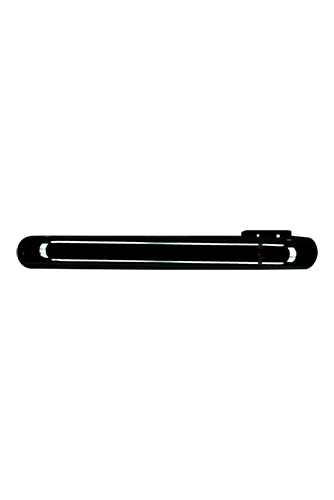

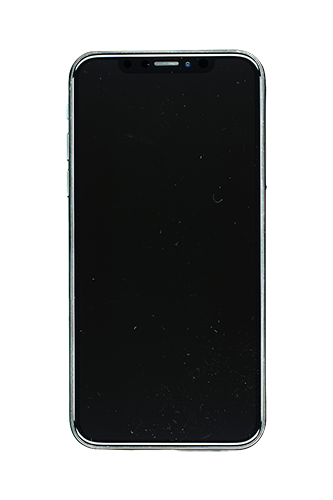

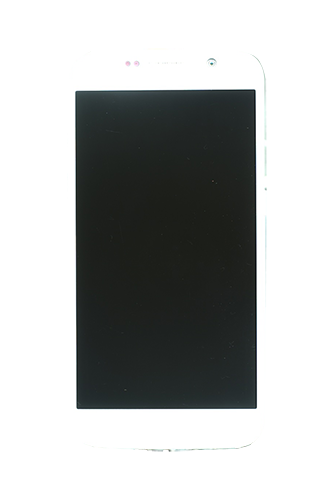

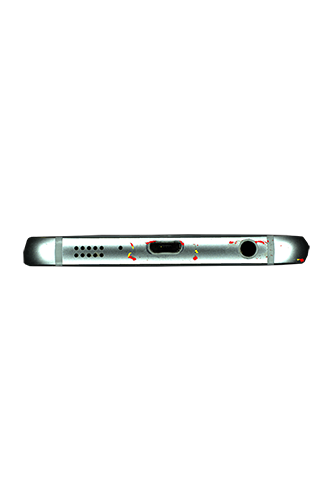

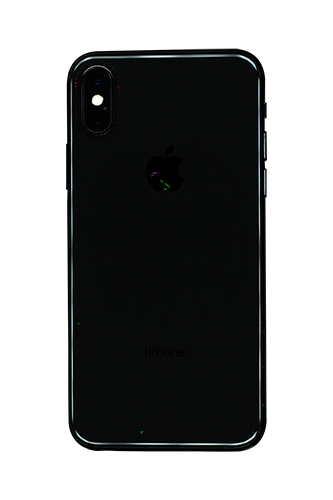

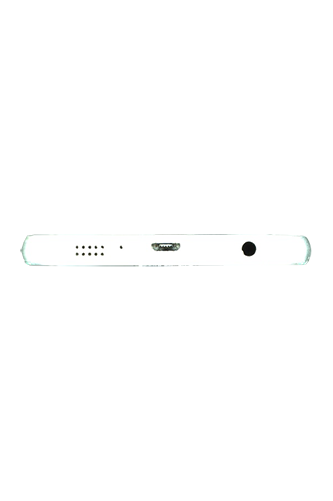

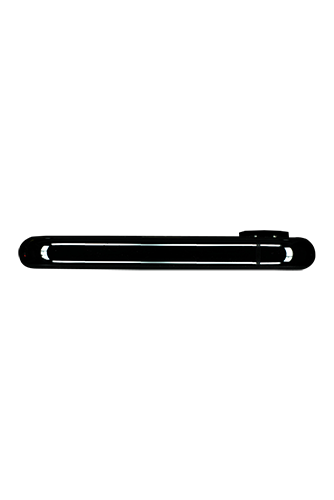

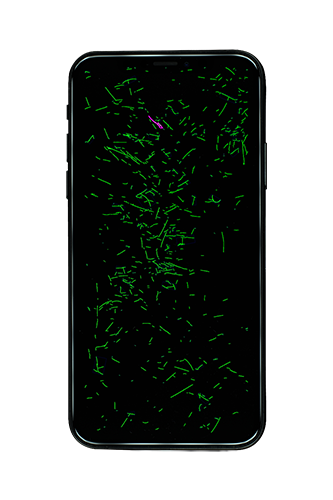

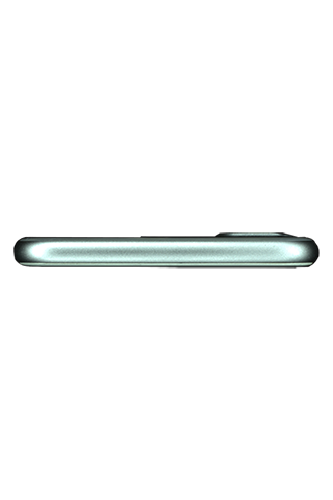

In many cases, it is difficult for a human operator to see the extent of the scratches and other cosmetic variations in the device. The processed image clearly reveals the flaws by color-coding highlights that are superimposed on the raw image.

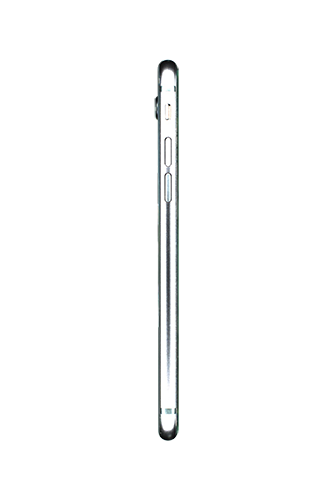

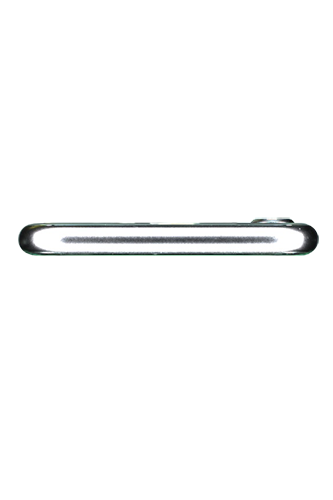

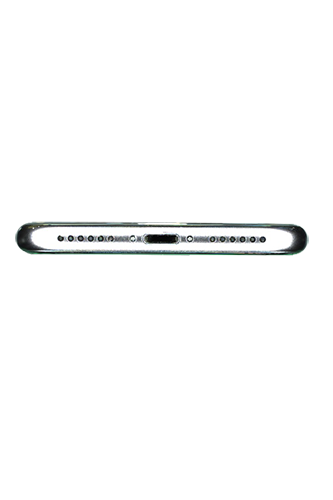

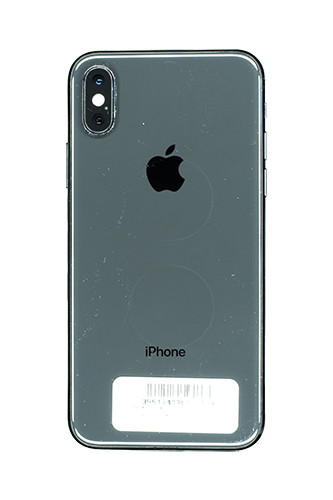

Once DEEPSIGHT has graded the device, the human operator can review the raw images and the processed images that highlight the defects of the device and itemize the parameters that triggered the grade it received.
The grading data is stored in the cloud and electronically integrated with other supply chain management systems and warehouse automation.
DEEPSIGHT Portal offers a comprehensive web-based dashboards and analytics that allow you to gain hidden insights into your business. You can know which channels consistently provide the highest and lowest quality of incoming devices.
Downstream repair processes, such as the buff and polish process results can be evaluated and tracked over time by make/model. The DEEPSIGHT Portal screen below shows the grading results of a typical worker’s shift with a random basket of devices.
DEEPSIGHT operates as a standalone device fed by a human operator or in a highly automated “pod” of 2 to 4 machines with an automatic robotic feeder arm.
The machine has a cycle time of 60 seconds with a total output of 4 phones per minute in the 4-machine pod configuration. The below table shows the DEEPSIGHT grading capacity.
in 8 hours shift
in 24 hours
