Laser Inspection Robot
POWERFUL ROBOTIC SYSTEM FOR GUN BARREL INSPECTION
AI-powered Robotic Inspection Solution for Guns, Torpedo & Rocket launcher tubes

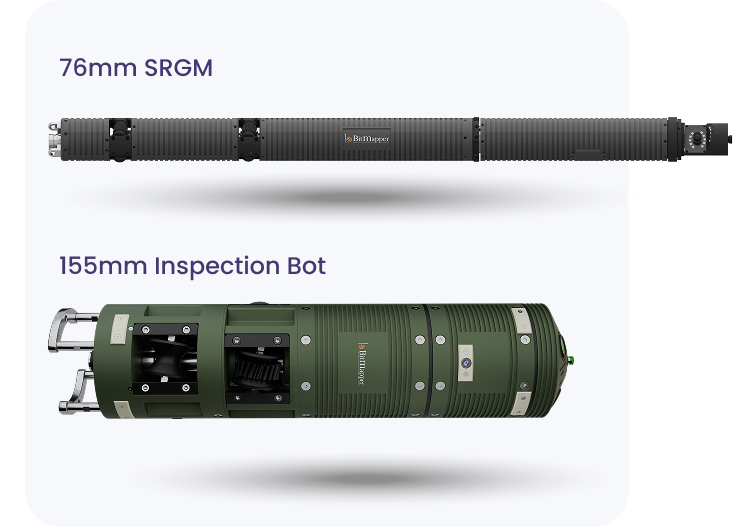

The Laser Inspection Robot is a reliable and automated solution for inspecting the health of an armament barrel. The robot is designed to automatically crawl and inspect large caliber gun barrels, IRL, and submarine torpedo tubes. The Robot is a modular system equipped with cutting-edge technology, incorporating an onboard camera and an advanced LASER system. Through its meticulous examination, it generates comprehensive analytical reports, providing you with an in-depth assessment of the barrel’s health and serviceability.
Features
Fully Automated Operation
Automatically determine serviceability of barrel
Data-driven
Inspection data with micron-level precision
AI-powered Inspection
Detect defects flawlessly, and automatically
Versatility
Supports smooth and rifled barrels
Manual & Automatic Modes of Operation
Flexibility to suit your needs
Utility Benefits
Automated Digital Record Keeping
The system maintains the history of camera images, LASER Scan data, and analytical reports from inspections.
Operate with Ease
Only one user can load, unload, and control the system.
Eliminates Guess Work
Perform inspections confidently with AI-driven scanning powering the camera and the LASER system.
Dual Operation Modes
Users can choose between manual and automatic modes as per requirement and ease of use
Live Monitoring
The camera’s live stream lets users see, control, and adjust operations in real-time
Flexible Power Supply
The robot can run on AC and DC power with up to 24h of battery backup for operational flexibility.
Technical Specifications
Crawling and Inspection System (Ø X L)
76mm x 1200 mm SRGM, 536mm x 700 mm Torpedo, 213 mm × 625 mm IRL
Crawling and Inspection System
7 Kg (SRGM)
27kg ( Torpedo )
20kg (IRL)
Inspection Mechanism
SRGM & Torpedo : 5 MP CMOS camera, LASER profiler,100μm (micron) accuracy
IRL : 2 MP CMOS camera, LASER profiler, 75 μm depth resolution, 150 μm spatial resolution
Operation Modes
Manual & Automatic
Single – operator loading/unloading and control
Controller
SRGM & Torpedo :
- Portable, ruggedized with 16” sun- readable Display
- 16 GB RAM, GPU, 1 TB SSD
- Interfaces : 1 Gbps Ethernet, USB
- Power : 230 V with 4 hours battery backup
IRL :
- Portable, ruggedized with 15” sun- readable Display
- 8 GB RAM, GPU, 2 TB SSD
- Interfaces: 1 Gbps Ethernet, USB
- Power: 24 VDC or 230 VAC, 50 Ah Li-ion battery backup
Environmental
SRGM & Torpedo :
- Operating: 0 °C to 50 °C, up to 60% RH
- Storage: -10 ° C to 65 ° C, up to 90% RH
IRL :
- Operating: 0 °C to 50 °C, up to 60% RH
- Storage: -20 ° C to 65 ° C, up to 90% RH
Software
- AI/Deep Learning analysis with auto-annotation
- 3D point-cloud visualization
- Configurable metadata, role-based access
- Export to Excel & PDF
- Predictive barrel life model
